30-Slot Cell Phone Charging Cabinet for K-12 Schools — Centralized Storage to Reduce Classroom Distractions
Phone management in K-12 schools has been a persistent challenge for school administrators over the past several years. It’s not that schools don’t want to address it — they lack the right infrastructure. Bans rely on teachers to enforce, with inconsistent results.Standard Storage Bag leave phones mixed together, making it hard to track which belongs to whom. And when schools provide charging banks, students simply shift their distraction from the phone to the charging bank itself.
This 30-slot cell phone charging cabinet is built specifically for school management scenarios — not a standard storage locker with a different color finish, but a unit designed from the ground up around actual classroom needs: individual compartment sizing, mechanical lock configuration, and internal cable routing that works in a school setting.
30-Slot Cell Phone Charging Cabinet Specifications
| Parameter | Details |
|---|---|
| Compartments | 30 slots |
| Single Slot Dimensions | W160 × D200 × H150 mm |
| Overall Dimensions | W1000 × D220 × H1200 mm (confirm final dimensions with factory) |
| Main Material | Cold-rolled steel, powder-coated finish |
| Per-Slot Load Capacity | Approx. 3 kg |
| Input Voltage | AC 220V / 50Hz (110V/60Hz export version available) |
| Per-Slot Output | Standard 5-pin power outlet (AC 220V / 10A) |
| Lock Type | Individual mechanical key lock (2 keys per slot) |
| Color | Off-white / light gray (standard; RAL custom colors available for bulk orders) |
30-Slot Cell Phone Charging Cabinet Key Features
One Slot Per Student — Clear Accountability
The biggest headache during exam collection is: “We collected a bag of phones, but whose is whose?” With this cabinet, each slot is assigned to a student by seat number or class roster. When a phone ends up in slot 12, the student assigned to slot 12 is responsible. Any discrepancy can be traced back by number. The proctor’s job shifts from “managing a pile of phones” to “managing 30 keys.”
Some K-12 schools in China have already adopted this slot-assignment approach during exam periods, with the workflow running smoothly without additional paperwork.
5-Pin Power Outlet — No Student BYOD Charging Gear Required
Each slot comes with a standard 5-pin outlet (AC 220V). Students plug in their own charging cable — no need for schools to provide charging equipment. This also prevents the scenario of phones charging in bags while students continue to scroll, defeating the whole purpose of collection.
The 5-pin outlet format is the standard wall socket configuration in Chinese schools, compatible with virtually all smartphone charging cables and devices like iPads.

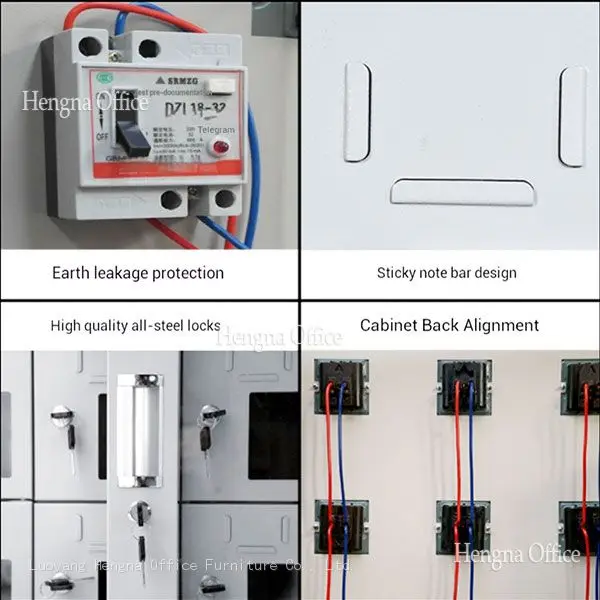

Mechanical Key Lock — Zero Maintenance Hassle
Fingerprint and keypad locks sound modern, but in a school environment the maintenance costs are higher than they appear. Sweat and oil from fingers interfere with fingerprint scanners. Students guess keypad codes. Batteries need regular replacement. These are real complaints from school IT staff and administrators.
Mechanical key locks are simple and reliable. Two keys per slot — one for the student, one held by the homeroom teacher or school office. No batteries to replace, no codes to reset, no electronic components to fail.
Exam-Day Batch Management
With a standard class of 30 students, one cabinet covers one class. Before an exam, assign slots by seat number, distribute keys, students lock phones in and hand keys back. After the exam, reverse the process. No sign-out sheets, no lost-phone disputes.
What Schools Should Confirm Before Ordering
B2B procurement for schools is different from consumer e-commerce. Before requesting a quote, it’s worth thinking through a few operational questions:
How many classes need simultaneous management? If each class requires its own cabinet, you’ll need to count the number of classes across grade levels. Bulk orders typically come with better unit pricing, so having this number ready helps factories give you an accurate quote.
Is the 110V export version required? The standard version runs on 220V / 50Hz. For schools in North America, Southeast Asia, or other regions with 110V mains, the export version needs to be specified at the time of order — production configuration changes are made before manufacturing starts, not after.
Where will the cabinet be installed, and who handles electrical work? The cabinet is 1 meter wide, 0.22 meters deep, and 1.2 meters tall — designed to sit flush against a wall without blocking corridors. Common installation spots: beside the back classroom door or at the end of a hallway. Wiring should be handled by a licensed electrician to meet local electrical codes.
Any requirements for school branding or numbering? Bulk orders can include laser-engraved school names or inventory numbers on each cabinet door, making it easier to manage multiple units across campus. Engraving content and placement should be confirmed with the factory before production.
Frequently Asked Questions
Q: Does each student need their own set of keys?
A: Each slot comes with two keys. The recommended setup: one key stays with the student, one is held by the homeroom teacher or school office. This mirrors how most schools already manage spare classroom keys — no new system required. If a class has more than 30 students, consider installing two cabinets side by side, or temporarily managing key distribution during peak periods like exam weeks.
Q: Is there a risk of overload when 30 phones charge at the same time?

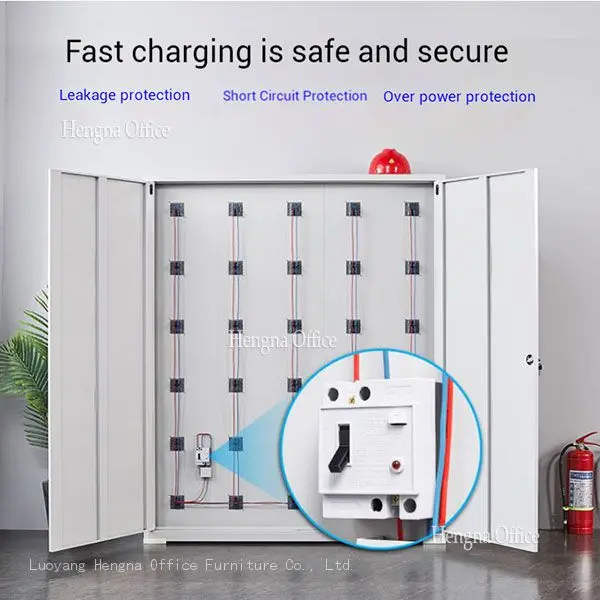

A: Each slot draws power independently with individual current control — one malfunctioning phone won’t affect the others. The unit includes built-in overload and leakage protection. We recommend having a licensed electrician complete the installation according to local electrical codes, and running a full function test before putting the cabinet into regular use.
Q: Will this fit in a typical classroom?
A: At 1 meter wide and 0.22 meters deep, the cabinet is designed to sit flush against a wall without eating into floor space. Common placements: next to the back classroom door or at the end of a corridor. Both wall-mounting and floor-bolt fixing options are available from the factory — choose based on your school’s wall structure and preference.
Q: What happens if a student loses their key?
A: Each slot has a backup key held by the school. We recommend keeping these with the school office or grade-level coordinator, with a simple sign-out log to track usage. This prevents excessive re-locking disruptions for other students during the day.
Q: Can this be installed in hallways or semi-outdoor areas?
A: This model is designed for indoor use only — it is not water-resistant and should not be placed in damp or outdoor environments. If hallway or semi-outdoor installation is needed, adding a rain canopy is advisable. Alternatively, we can discuss a waterproof door panel customization for your specific scenario.
Q: Is there a 110V version for North American schools?
A: Yes. We offer 110V / 60Hz configurations and have supplied cabinets to K-12 schools in North America. When placing a bulk order, please confirm the target region’s voltage standard — we adjust the production configuration before manufacturing begins.
Q: What is the minimum order quantity?
A: Single-unit orders are accepted. For custom configurations (color, logo, voltage), minimum quantities depend on the specific options selected. For the best unit pricing, orders of 10 or more units are recommended; orders of 30 or more typically allow further negotiation on custom production costs. Sample units are available for quality confirmation — sample fees and shipping are quoted separately.
Q: What does the warranty cover, and how are quality issues handled?
A: One-year warranty on all units. Within the warranty period, non-user-induced quality defects are covered by repair or replacement at our cost. For damage caused by misuse or issues outside the warranty period, we provide replacement parts and technical guidance — repair costs are the buyer’s responsibility in these cases. For bulk orders, we recommend completing quantity and quality inspection within 7 business days of delivery and reporting any issues promptly.
Customization Options
| Option | Details |
|---|---|
| Slot Count | 20, 30, 40 slots, or custom configurations |
| Voltage | 220V/50Hz (domestic); 110V/60Hz (North American export) |
| Color | Standard off-white; RAL custom colors for bulk orders |
| Installation | Wall-mount or floor-bolt fixing |
About the Manufacturer
Luoyang Hengna Office Furniture Co., Ltd. is a steel storage equipment manufacturer with approximately 9 years of production experience. Our products have been supplied to educational institutions across Europe, North America, and Southeast Asia. We support sample orders for quality confirmation and offer OEM/ODM bulk customization. One-year warranty included. For bulk inquiries, please share your use scenario and target quantity for a tailored quote.
